Working Pressure: 1500PSI WOG for 1/8" to 1/4" 1000PSI WOG for Bottom Port on 3/8" to 1/2". 600PSI WOG for Side Port on 3/8" and 1/2".

工作压力：尺寸为1/8"到1/4"时1500PSI

底孔为3/8"到1/2"时1000PSI.侧孔尺寸3/8"和1/2"时600PSI

Vacuum Rating :29.92" Hg

真空压力：29.92"Hg

Temperature Range: -40 °F to +300 °F ( -40 °C to +150 °C)

温度范围：-40℃到150℃

Full port for 1/8" to 3/8" . Standard Port for 1/2"

全通径1/8"到3/8".标准通径1/2"

Panel-mount hole is 9/16" Dia.

面板安装孔径9/16"

Brass body and cap ,PTFE ball seats ,Viton Stem sealing ,Brass Chrome plated ball

黄铜阀体与阀帽，聚四氟乙烯球座，含氟橡胶阀杆密封，黄铜镀铬球体

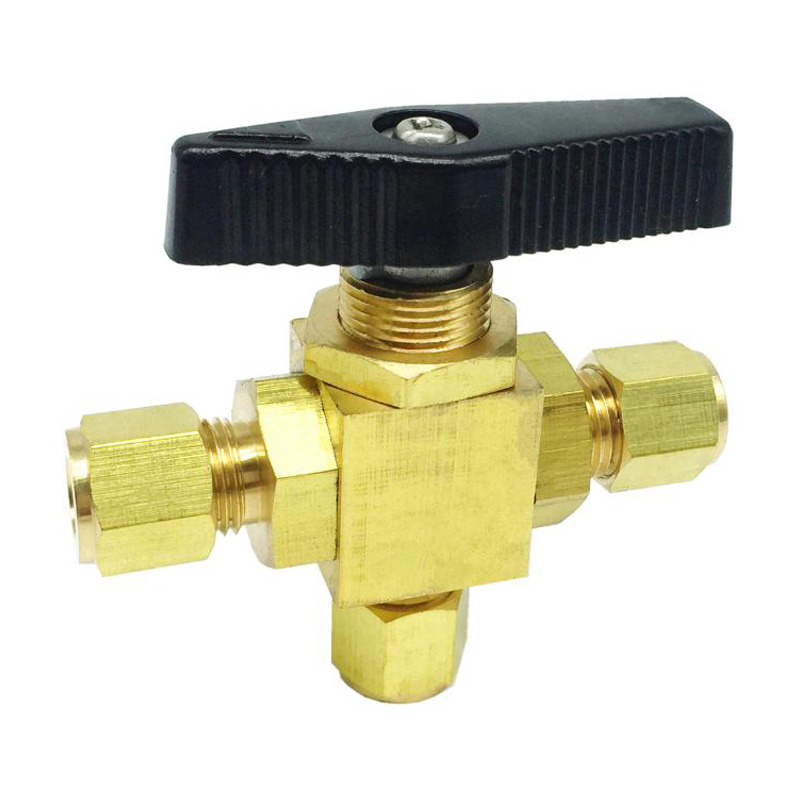

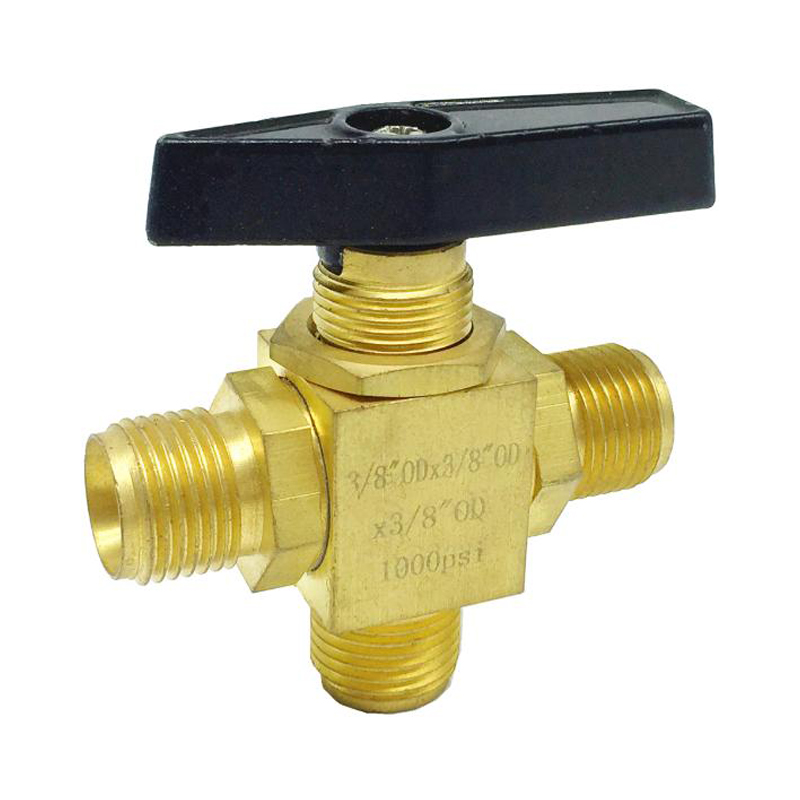

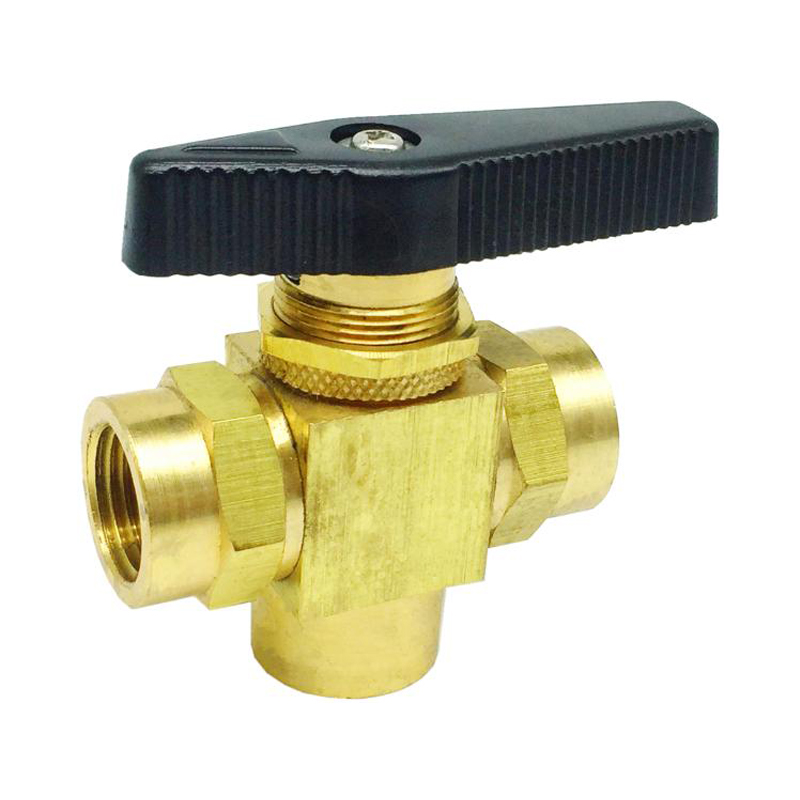

Available connection : NPT Female ,NPT Male and Yor-Lok Tube Fittings (Double Ferrule)

连接形式：NPT内螺纹，NPT外螺纹与软管接头（双卡套）

Available Handles :Nylon Tee Handle and Zinc Wedge Handle

手柄类型：尼龙T型手柄与锌合金手柄
