"1500PSI WOG for 1/8"" to 1/4"",1000PSI WOG for Bottom Port on 3/8"" to 1/2""

1500PSI WOG用于1/8"到1/4"，1000PSI WOG用于3/8"到1/2"的底部端口

600PSI WOG for Side Port on 3/8" and 1/2"

600PSI WOG用于3/8"和1/2"的侧边端口

Suitable for Vacuum Service to 29.9"Hg

适用于29.9”汞的真空应用

Temperature Range: -40°F to 300°F

温度范围:-40°F到300°F

Full port for 1/8" to 3/8", Standard Port for 1/2"

全通经用于1/8"至3/8"，标准的用于1/2"

Panel-mount hole is 9/16" Dia

面板安装孔直径9/16英寸

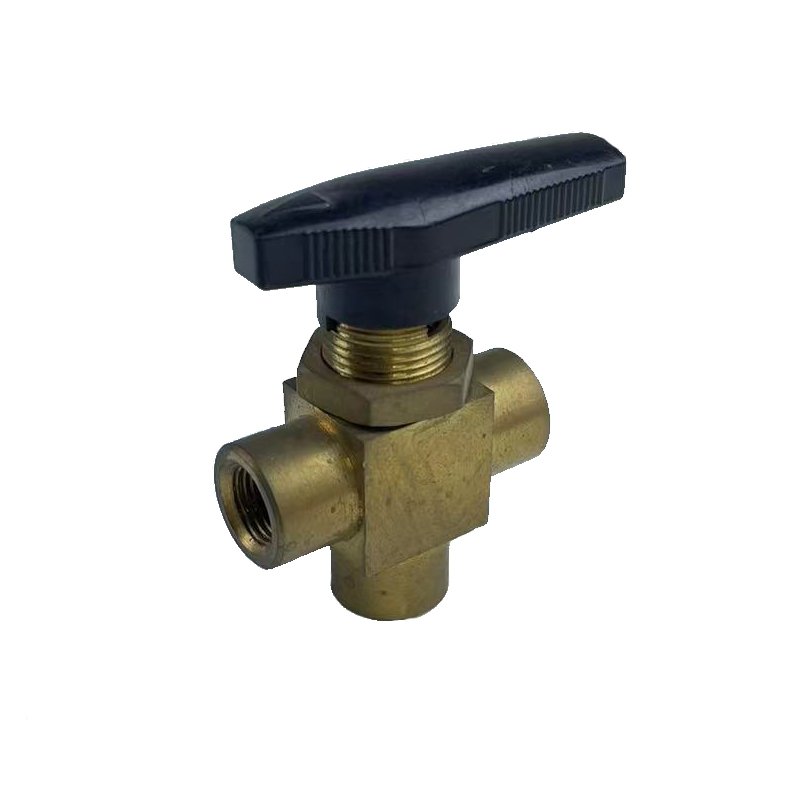

Brass body and cap

黄铜帽身

PTFE ball seat

聚四氟乙烯密封圈

Viton Stem sealing

氟橡胶阀杆密封

Chrome Plated  Ball

镀铬球

Zinc Wedge Handle

锌合金手柄

Female x Femalex Female Connection

内x内x内连接
