| 货号 | 规格(Inch) | 材质 | 连接方式 | 温度范围 | 工作压力 | 包装数量 | 库存 | 购买数量 |
| CG-MCDV25-CS | 1/4" | 9999999 |
-
+
|
|||||
| CG-MCDV38-CS | 3/8" | 9999999 |
-
+
|
|||||
| CG-MCDV50-CS | 1/2" | 9999999 |
-
+
|

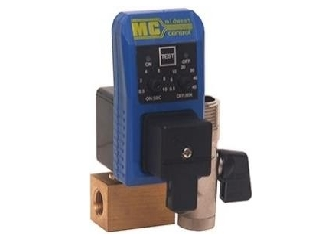

uUL and CE Approved
uBPSC Compact Chrome Strainer
uSolid State Timer
uOn-Off Lights
uManual Test Button
u6 Ft. Power Cord
uTimer Specifications
uInterval Time: 0.5 - 45 Minutes
uDischarge Time: 0.5 - 10 Seconds
uSupply Voltage: 115V (+/- 10%)
uCurrent Consumption: 4mA Max.
uEnvironmental Protection: NEMA 4
uCase Material: ABS Plastic FR Grade
uConnection: DIN 43650A ISO4400/6952
uValve Specifications
uType: 2-Way Direct Acting Valve
uValve Body: Machined Brass Bar
u4.5mm Orifice
uInsulation: Thermal Group H
uEnvironmental Protection: IP 65/NEMA 4
uMounting: Any Position
