货号 | 规格(Inch) | 材质 | 连接方式 | 温度范围 | 工作压力 | 包装数量 | 库存 | 购买数量 |
CG-SCDK-5025 | 1/2" x 1/4" | 9999999 |
-
+
|
|||||
CG-SCDK-5038 | 1/2" x 3/8 | 9999999 |
-
+
|
|||||
CG-SCDK-5050 | 1/2" x 1/2" | 9999999 |
-
+
|

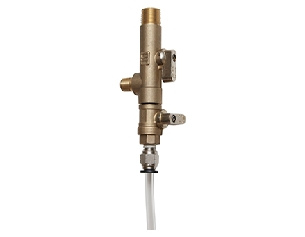

uForged Brass Construction
uBlow Out Proof Stem
uPTFE Ball Seats and Rubber Seals
uHose Connection (Strainer Discharge ): 1/4”FPT
uConnection to Condensate Drain : ¼”, 3/8” or ½” MPT
uReceiver Connection (Strainer Inlet): ¼ “ FPT and 1/2” MPT
uIncludes 3 Ft. Drain Hose Kit with Push On Fittings
uWith the self clean feature It is no longer necessary to isolate the
udrain from the compressed air source to clean the BPS inlet screen
uThe self cleaning features includes an additional lever/ isolation
uvalve which Is typically In the closed position. Periodically the
ulever should be opened for a few seconds to allow compressed air
ufrom the receiver to blow by the BPS screen pushing the debris
uout from the screen.
uSelf Cleaning Drain/Lever
uLever Horizontal Position: Closed
uLever Vertical Position: Open
