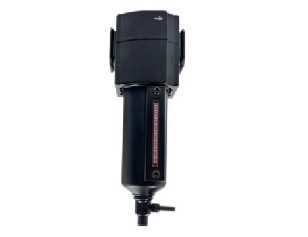

uCompact General Purpose Particulate Filters

uProtects Air Operated Devices by Removing Liquid and Solid Contaminants from the Air Stream

uQuick Release Bayonet Metal Bowl with Sight Glass

uManual Drain Standard MC619-50

u40 Micron Element Standard MC4438-03

uOptional 5 Micron Element Available MC4338-01

uBowl Size 4.2 Fluid Oz.

uOptional Auto Drain MC4000-51R

uA Minimum of 5 PSI and 2 SCFM is Required to

uClose the Drain

uA Minimum of 3 PSI is Required to Open the Drain

uManual/Auto Drain Connection:  Will Fit 1/8-27 and

u1/8-28 Pipe Thread

u3/16" Tubing Can Be Used to Connect Auto Drain

uRecommended Accessories

uWall Mounting Bracket MC4424-50

uQuick Clamp MC4314-51

uQuick Clamp with Bracket MC4314-52

uQuick Clamp Pipe Adapters

uMC4315-01-25  (1/4")

uMC4315-02-38  (3/8")

uMC4315-03-50  (1/2")
