| 货号 | 规格(Inch) | 材质 | 连接方式 | 温度范围 | 工作压力 | 包装数量 | 库存 | 购买数量 |

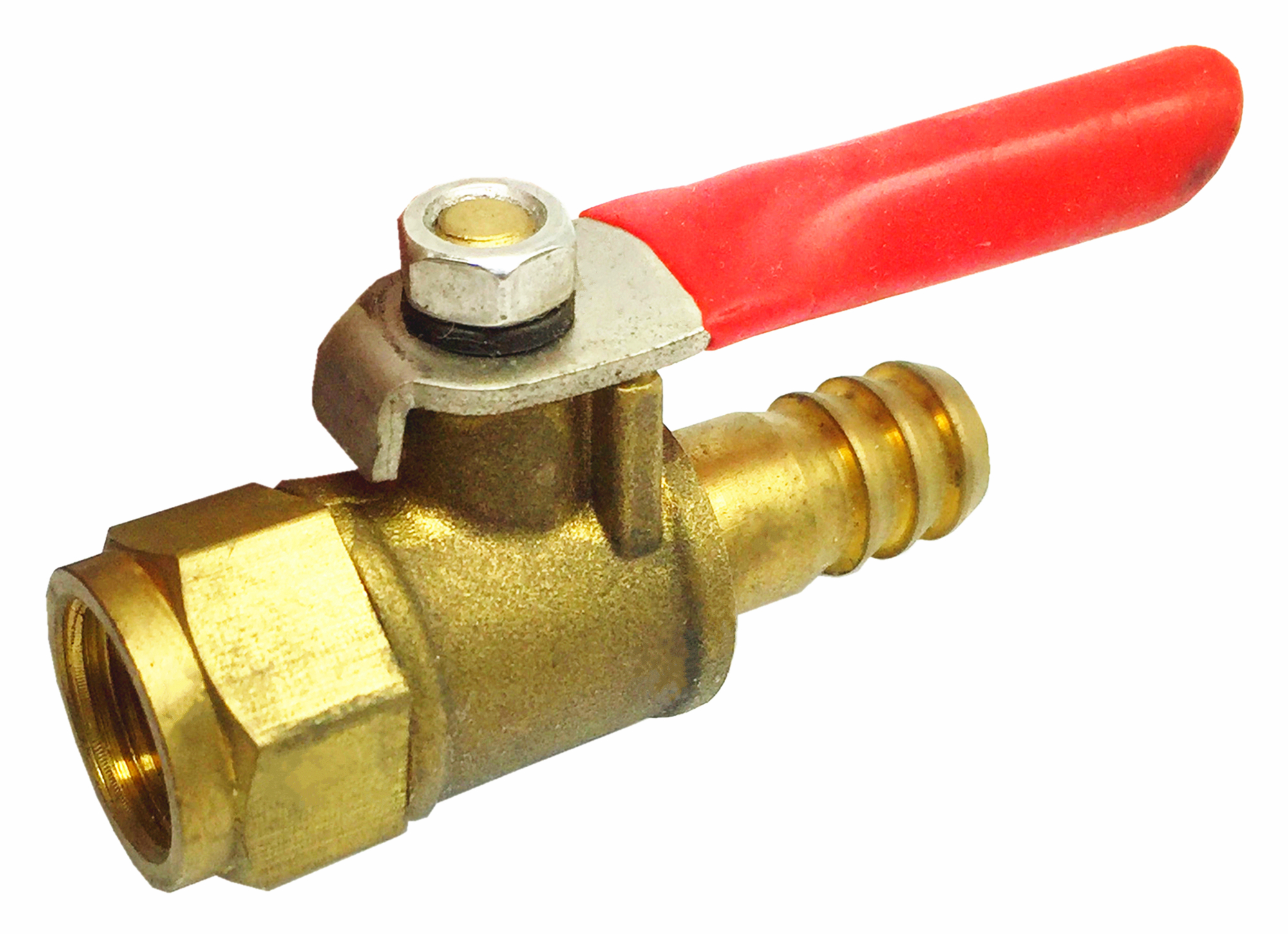

| CG-ACBV-12F1/8H | 1/8F X 1/8"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12F3/16H | 1/8F X 3/16"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12F1/4H | 1/8F X 1/4"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12F3/8H | 1/8F X 3/8"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25F1/8H | 1/4F X 1/8"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25F3/16H | 1/4F X 3/16"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25F1/4H | 1/4F X 1/4"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25F3/8H | 1/4F X 3/8"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25F1/2H | 1/4F X 1/2"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33F1/8H | 3/8F X 1/8"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33F3/16H | 3/8F X 3/16"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33F1/4H | 3/8F X 1/4"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33F3/8H | 3/8F X 3/8"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33F1/2H | 3/8F X 1/2"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50F1/4H | 1/2F X 1/4"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50F3/8H | 1/2F X 3/8"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50F1/2H | 1/2F X 1/2"ID | 如图 | 内NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|

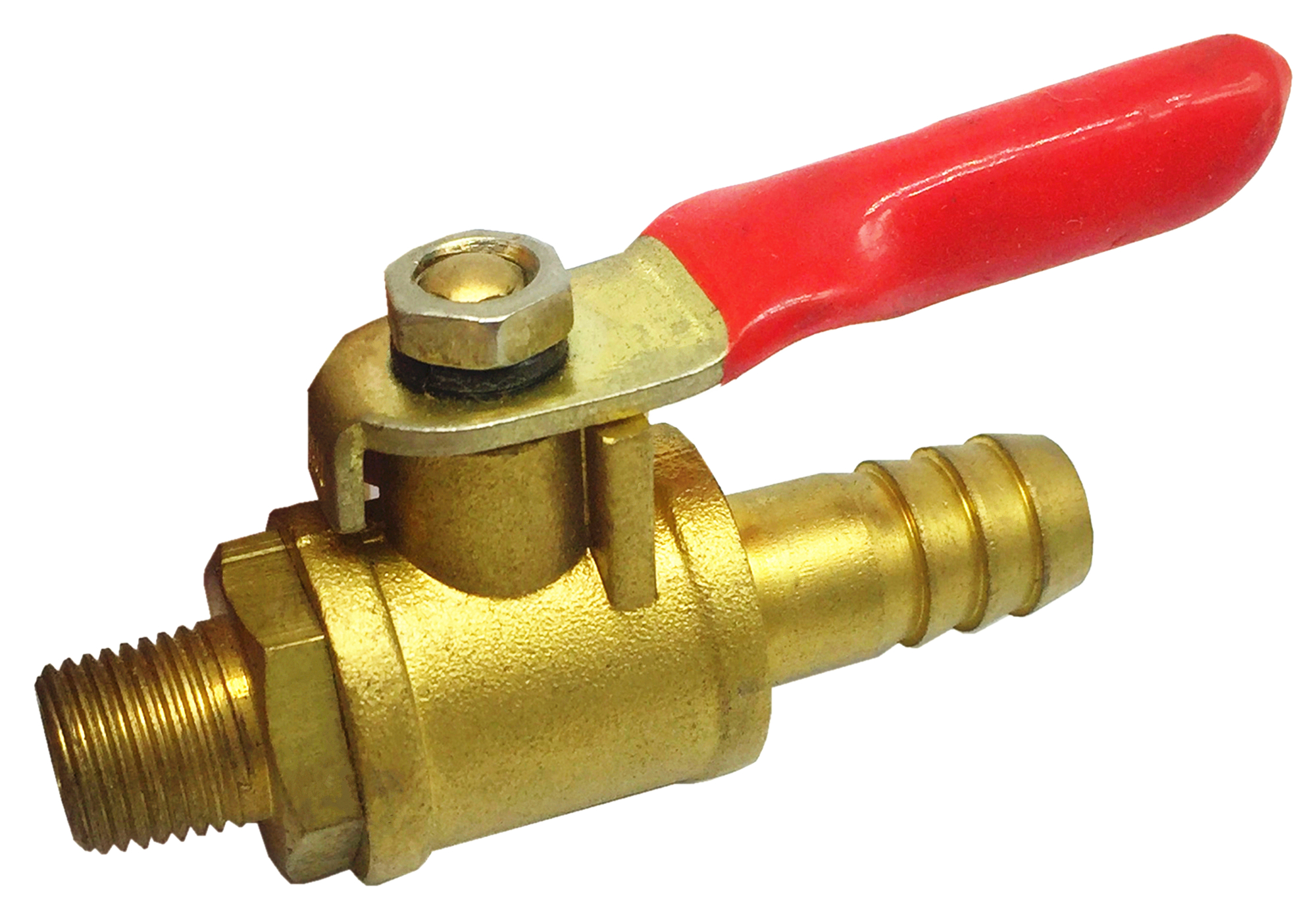

| CG-ACBV-12M1/8H | 1/8F X 1/8"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12M3/16H | 1/8F X 3/16"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12M1/4H | 1/8F X 1/4"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12M3/8H | 1/8F X 3/8"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M1/8H | 1/4F X 1/8"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M3/16H | 1/4F X 3/16"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M1/4H | 1/4F X 1/4"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M3/8H | 1/4F X 3/8"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M1/2H | 1/4F X 1/2"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M1/8H | 3/8F X 1/8"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M3/16H | 3/8F X 3/16"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M1/4H | 3/8F X 1/4"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M3/8H | 3/8F X 3/8"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M1/2H | 3/8F X 1/2"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50M1/4H | 1/2F X 1/4"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50M3/8H | 1/2F X 3/8"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50M1/2H | 1/2F X 1/2"ID | 如图 | 外NPT X 皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12M1/8UH | 1/8F X 1/8"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12M3/16UH | 1/8F X 3/16"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12M1/4UH | 1/8F X 1/4"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-12M3/8UH | 1/8F X 3/8"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M1/8UH | 1/4F X 1/8"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M3/8UH | 1/4F X 3/8"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M1/2UH | 1/4F X 1/2"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M1/8UH | 3/8F X 1/8"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M3/16UH | 3/8F X 3/16"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M1/4UH | 3/8F X 1/4"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M3/8UH | 3/8F X 3/8"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33M1/2UH | 3/8F X 1/2"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50M1/4UH | 1/2F X 1/4"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50M3/8UH | 1/2F X 3/8"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50M1/2UH | 1/2F X 1/2"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M3/16UH | 1/4F X 3/16"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25M1/4UH | 1/4F X 1/4"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|

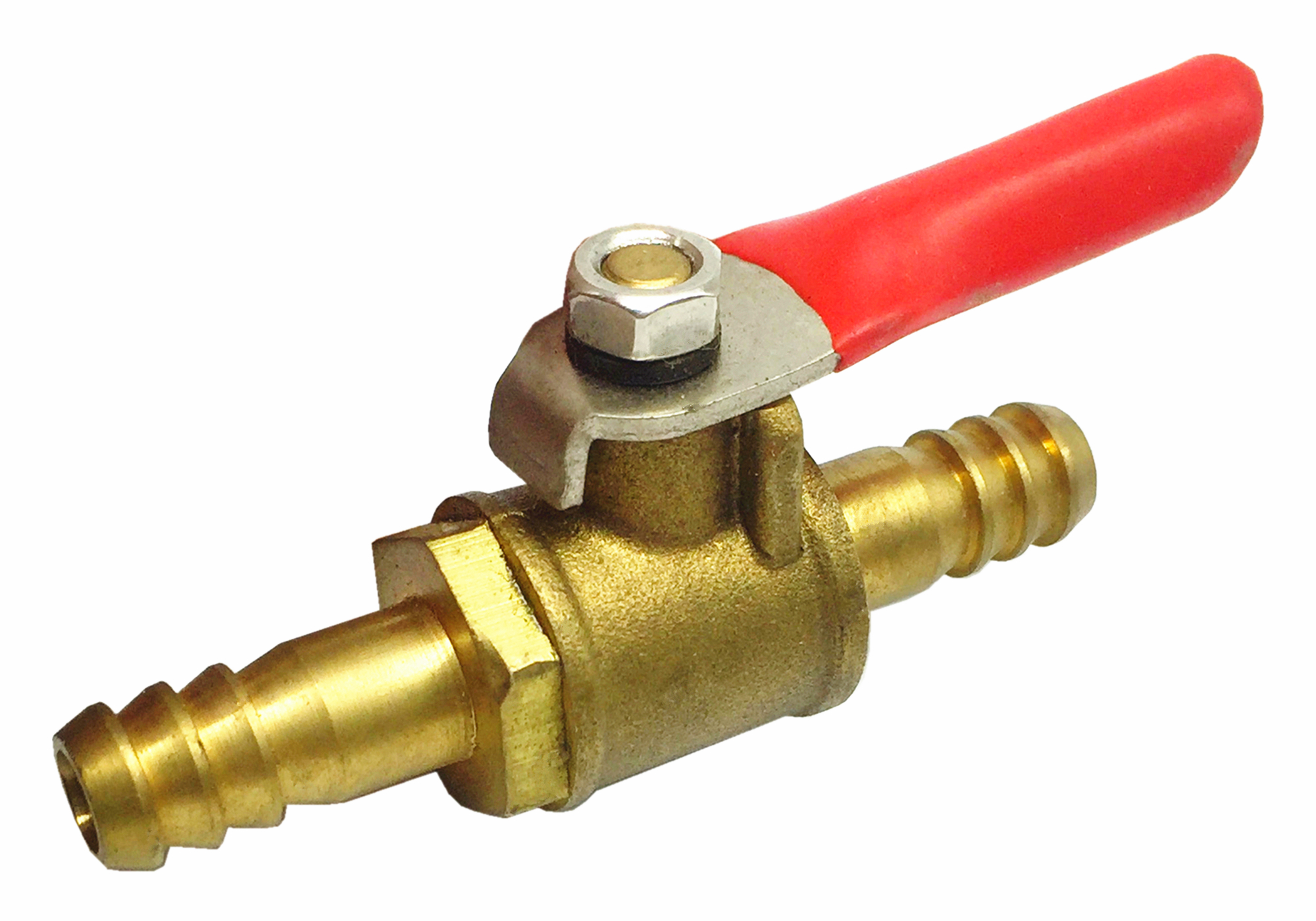

| CG-ACBV-12H | 1/8F X 1/8"ID | 如图 | 两端皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-25H | 1/4F X 1/4"ID | 如图 | 两端皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-33H | 3/8F X 3/8"ID | 如图 | 两端皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-50H | 1/2F X 1/2"ID | 如图 | 两端皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
|
| CG-ACBV-18H | 3/16F X 3/16"ID | 如图 | 外NPT X 可拆式皮管接头 | -20℃~+120℃ | 250-300PSI | 9999999 |
-
+
|
