| 货号 | 规格(Inch) | 材质 | 连接方式 | 温度范围 | 工作压力 | 包装数量 | 库存 | 购买数量 |
| CG-AVS-1/4 | 1/2"M x 1/4"F，1/4" | 9999999 |
-
+
|
|||||
| CG-AVS-3/8 | 1/2"M x 1/4"F ，3/8" | 9999999 |
-
+
|
|||||
| CG-AVS-1/2 | 1/2"M x 1/4"F ，1/2" | 9999999 |
-
+
|
Working pressure: 450PSI
工作压力：450PSI
Temperature Range: -4°F to 200°F( -20 °C to +100 °C)
温度范围：-20℃到100℃
Compact and small Body
较小的配件与阀体
Can be used on all timer controlled condensate drains,or anywhere need a angle Strainer to clean the air or liquid.
可用于所有的定时排水器,或者任何一个需要直球阀并带过滤功能的设备.
Allows to shut down areas of the compressed air system without having to depressurized the entire system.
整个系统无需减压就可以关闭压缩空气系统

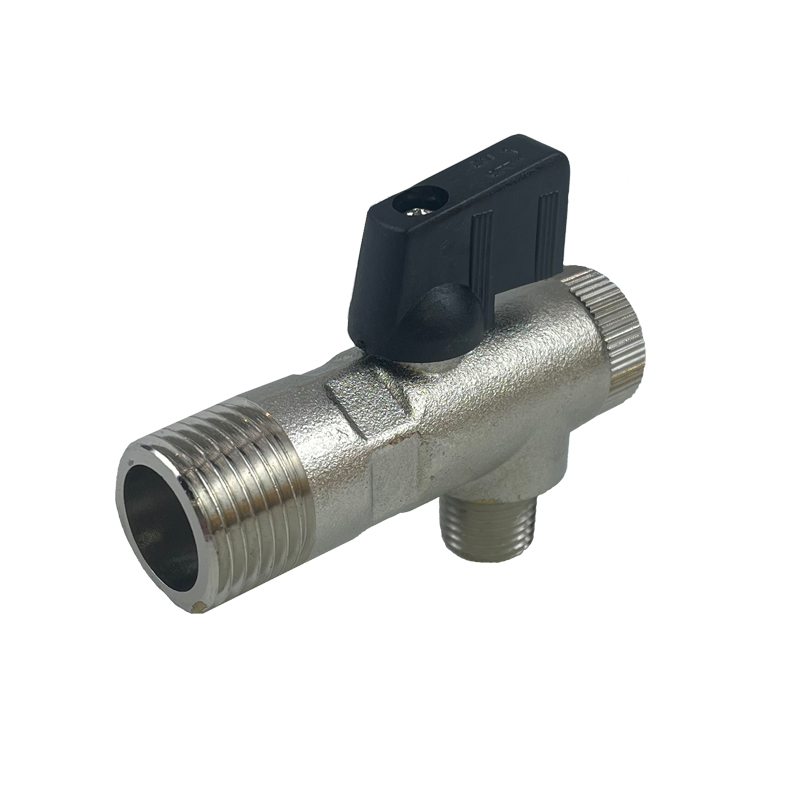

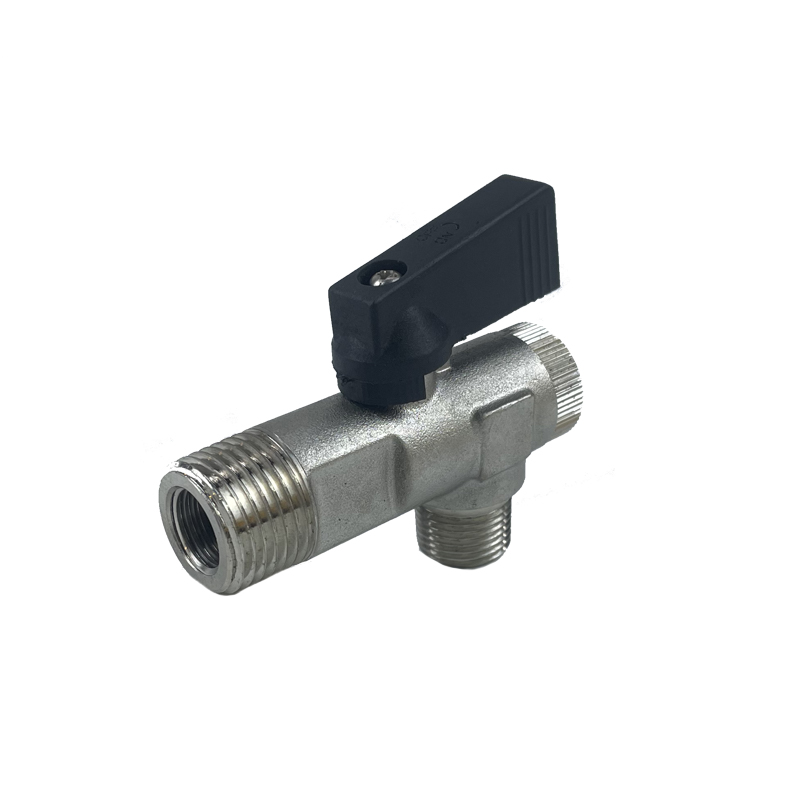

Forged brass body ,With stainless steel screen.
锻造黄铜阀体，带不锈钢滤网
Nickle plated brass ball ,PTFE ball seats.
镀镍黄铜球体，聚四氟乙烯球座
Nickle plated surface, or Non-plated. With Black Nylon/Zinc alloy handle.
表面镀镍，或不镀.带黑色尼龙/镀锌手柄
