首页 > 常规 > 球阀 > 黄铜球阀 > SAE黄铜球阀

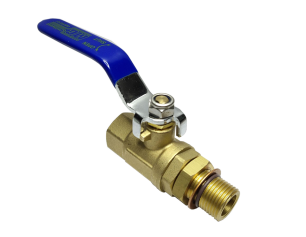

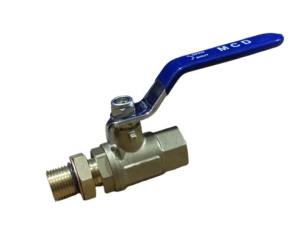

SAE黄铜球阀
SAE黄铜球阀

数量
- +
库存载入中···
  •
货号 规格(Inch) 材质 连接方式 温度范围 工作压力 包装数量 库存 购买数量
CG-QBV-50H 3/4"-16UN 黄铜 Male x Female -4°F ~ 370°F 600PSI 9999999
- +
CG-QBV3/4-16UNF 3/4"-16UN 黄铜 Male x Female -40°F ~ 365°F 600PSI 9999999
- +
批量加入购物车
  • 商品简介
  • 购买记录
  • 顾客评价(0)
商品名称
SAE黄铜球阀

 Rated for 600 PSI (WOG/CWP) 150 PSI (WSP) Service

Suitable for Vacuum Service to 29" Hg

ISO 9002 Registered Factory

Full Port

PTFE Seat Ring

Blow Out Proof Brass Stem

Hard Chrome Plated Brass Ball

Steel Handle w/Vinyl Grip

Male x Female Connection

3/4-16 UNF Male x Female Connection . 1/2" Port Size Ball Valve

with Viton O-Ring .87 ± .003 Wide x .644 ±.009

Inside Diameter
